Application
Piping networks for Rain water treatment in house building.
Install on the eaves to collect rainwater
Rainwater discharge
PVC Gutters And Fittings (BS EN607 EN12200 EN1462)
This series of fittings can match the standard BS EN607/EN12200/EN1462.No painting required, clean with a hose to keep the downspout looking its best.Maintenance-free, easy-to-clean design
Advantages
After chlorination, the PVC resin increases the chemical stability, thereby improving the material’s heat resistance, acid, alkali, salt, oxidant, etc. corrosion. The maximum service temperature of CPVC can reach 110 ℃, and the long-term service temperature is 95 ℃.
| Benefits |
| Long service life |
| Electrical insulation |
| Good heat preservation |
| Good chemical resistance |
| Easy to operate |
| light in weight |
| Impact resistance |
| High flame retardant |
Test basis for rain gutter products
| product name | size | testing base |

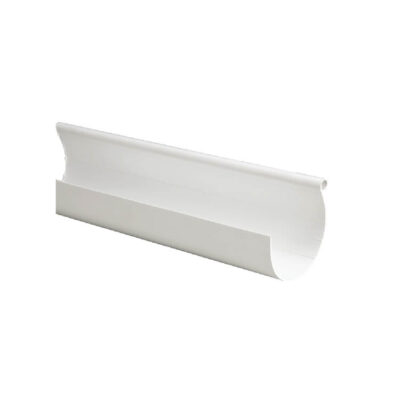

| Round rain gutter | 110mm | BS EN 607 |
| Round rain gutter | 140mm | |
| Round rain gutter | 170mm | |

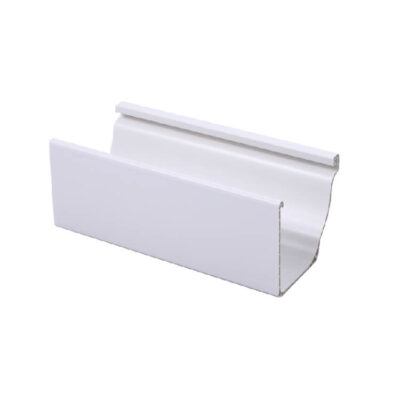

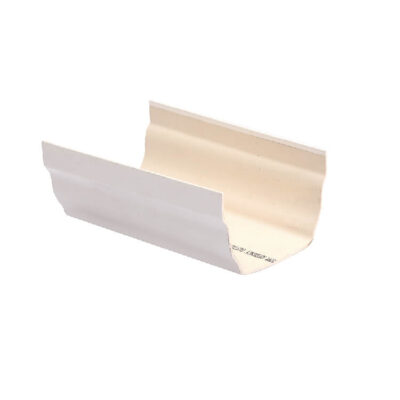

| Square rain gutter | 125mm | |
| Round rain gutter fittings | 110mm | |
| Round rain gutter fittings | 140mm | |
| Round rain gutter fittings | 170mm | |
| Square rain gutter fittings | 125mm | |
| Round rain gutter drainage fittings | 110mm | BS EN 12200 |
| Round rain gutter drainage fittings | 140mm | |
| Round rain gutter drainage fittings | 170mm | |
| Square rain gutter drainage fittings | 125mm | |

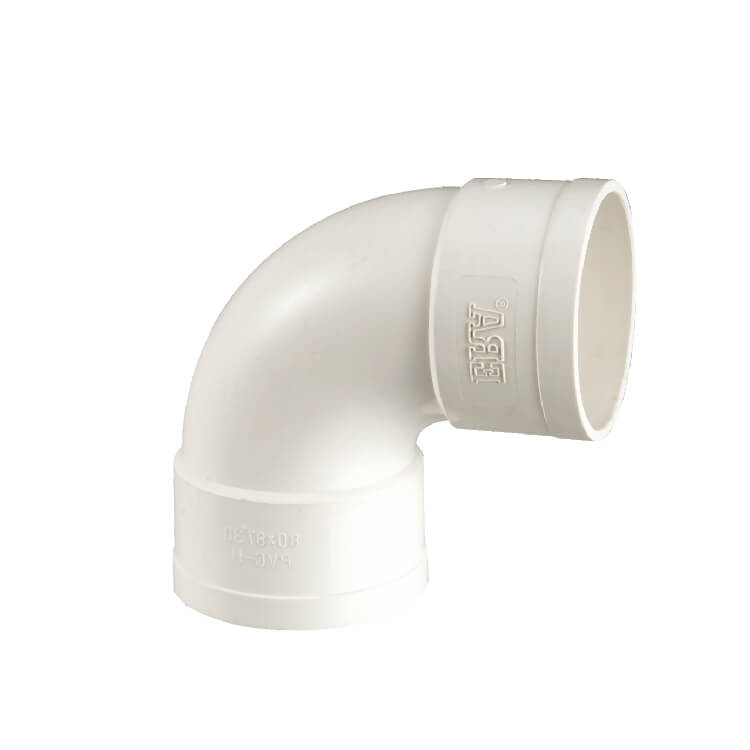

| drain pipe | 80mm | |
| drain pipe | 3” | |
| drain pipe | 100mm | |
| Square drain pipe | 74mm | |

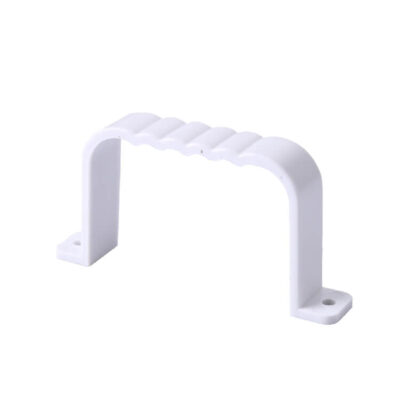

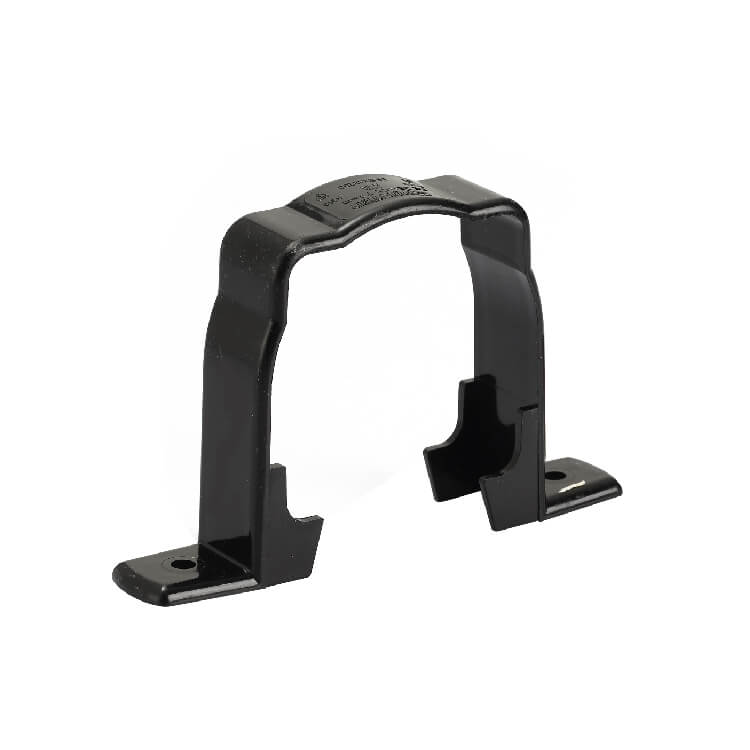

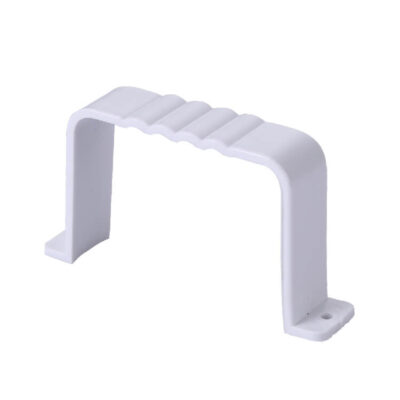

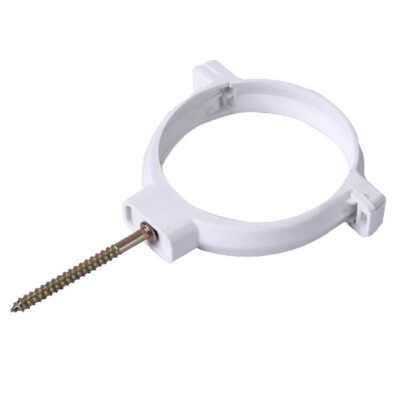

| drain pipe clamps | All sizes of the above series |
BS EN 1462
|
According to the standard and size of rain gutter, ERA rain gutter has the following size series:
|
ERA rain gutter |
Metric |
110MM |
Ordinary round rain gutter series |
|
Round rain gutter series with rubber ring |
|||
|
125MM |
Round rain gutter series with rubber ring |
||
|
Square rain gutter series with rubber ring |
|||
|
140MM |
Round rain gutter series with rubber ring |
||
|
170MM |
Ordinary round rain gutter series |
||
|
BS |
5.2” |
Ordinary square rain gutter series |
|
|
7” |
Ordinary square rain gutter series |
Installation & Testing
1. Level the rain gutter installation position, and use ink to flick the line from the beginning to the end.
2. Take out the rain gutter from the packing bag, place the rain gutter steadily on the ground or on the scaffold, and place the rain gutter horizontally under the rain gutter, use a cutting machine to cut one and

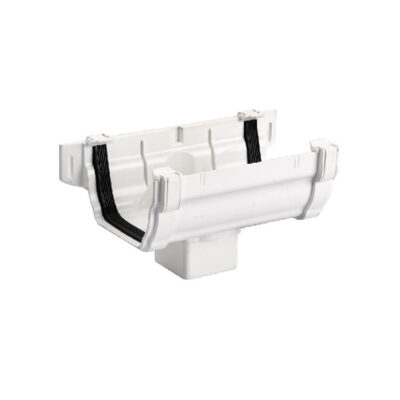

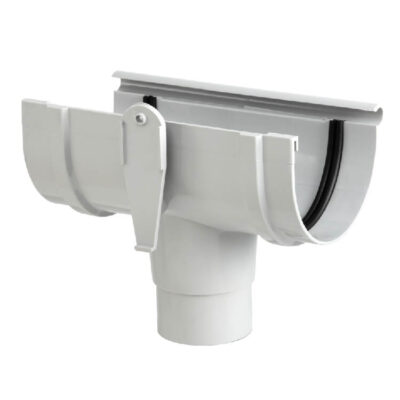

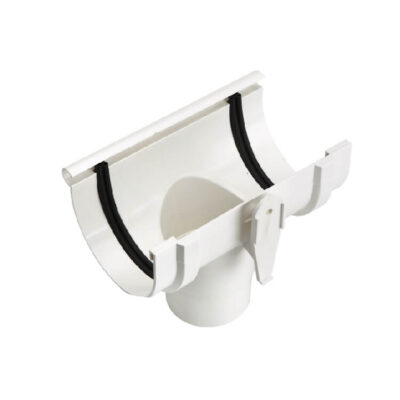

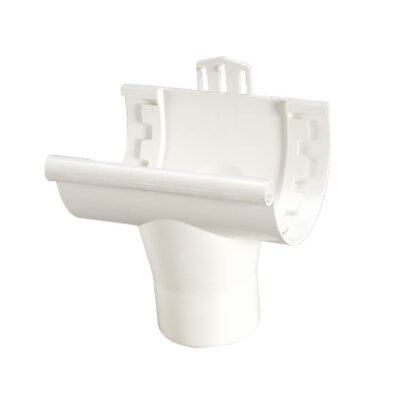

The rainwater bucket has a hole the same size as the spout.
3. Slowly insert the rainwater bucket into the rainwater trough to the launching position.

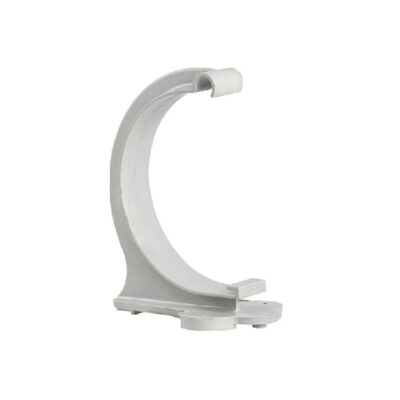

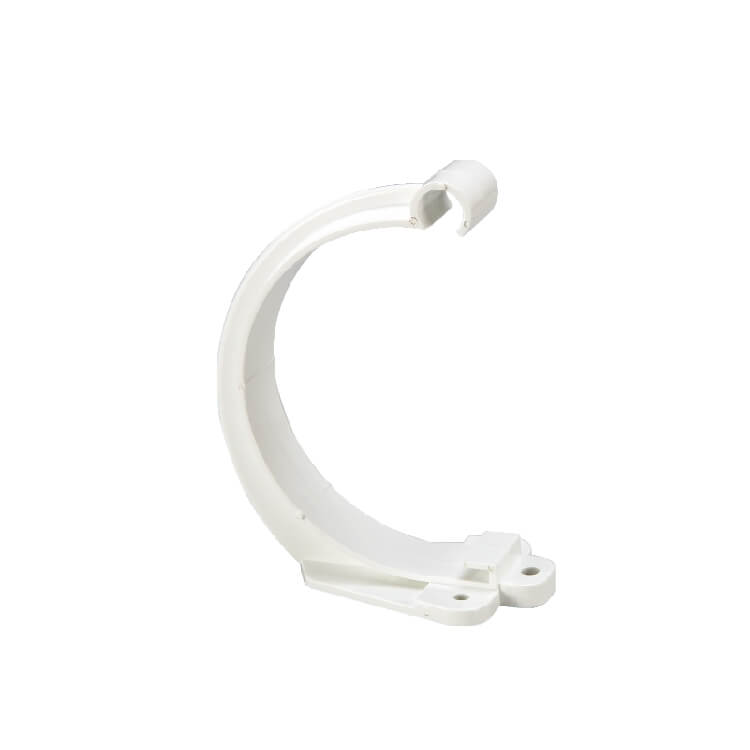

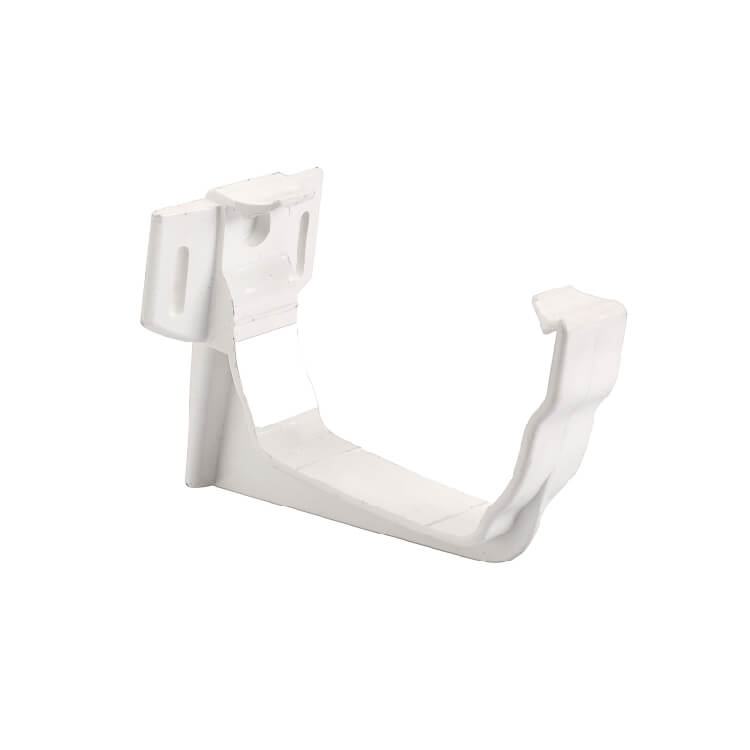

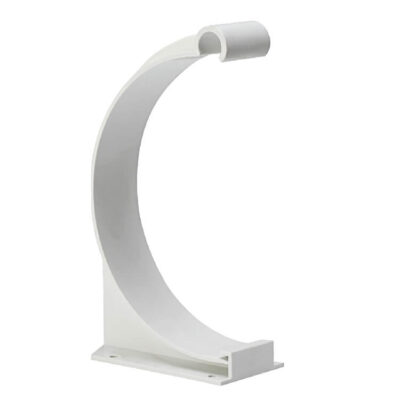

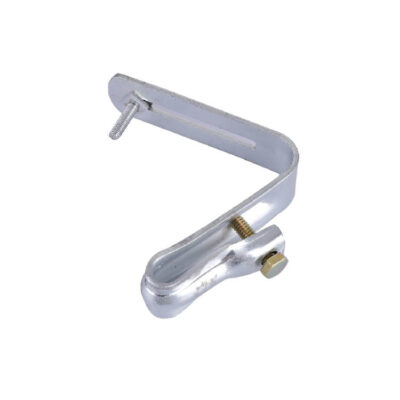

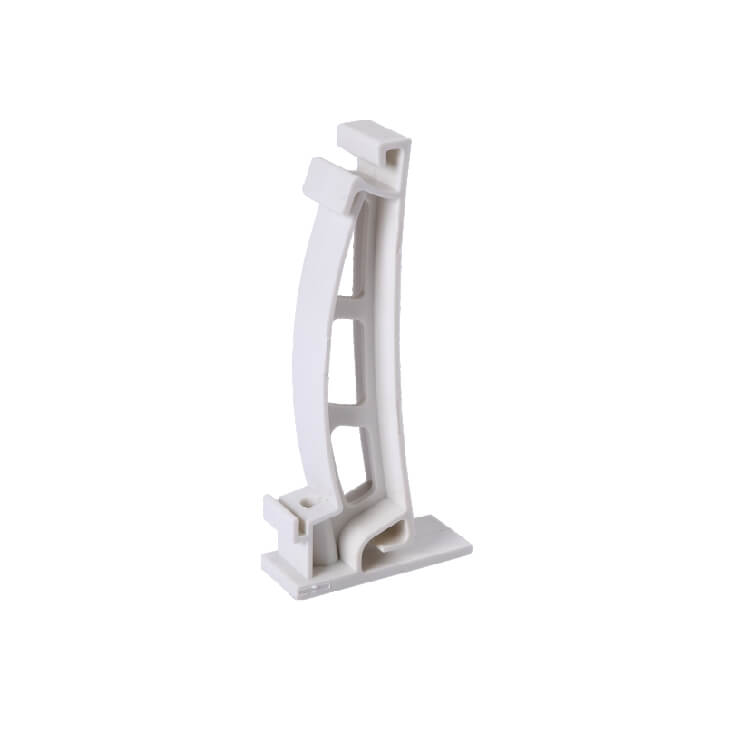

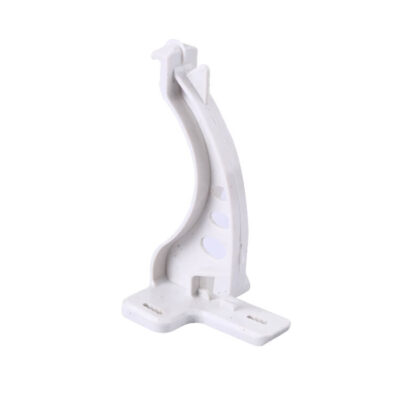

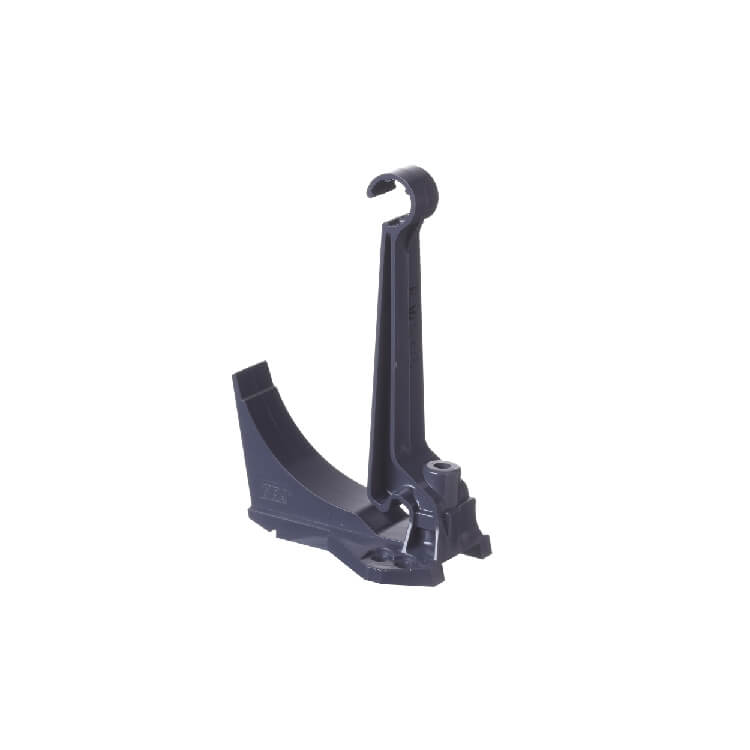

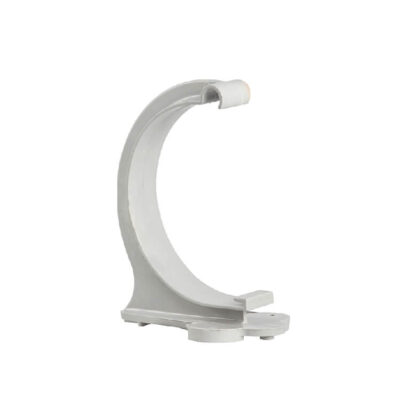

4. Install the hanger on the rain gutter; insert in order and master the spacing, the distance between two adjacent hangers is 40~45CM;
5. Use an electric drill (No. 6 drill bit) to make holes at the position of the elastic line at a distance of 40~45cm, and knock into the expansion tube.
6. Place the rain gutter at the position where the line has been stretched, adjust the spacing of the “splices”, and then fix the lifter and rain gutter with ∮4X40 stainless steel screws.

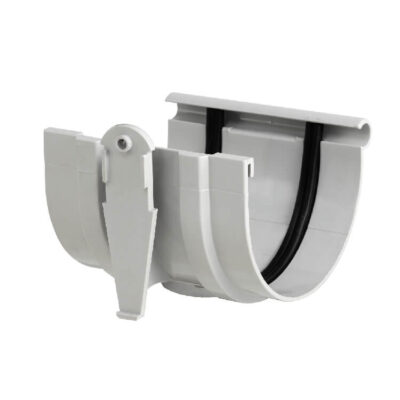

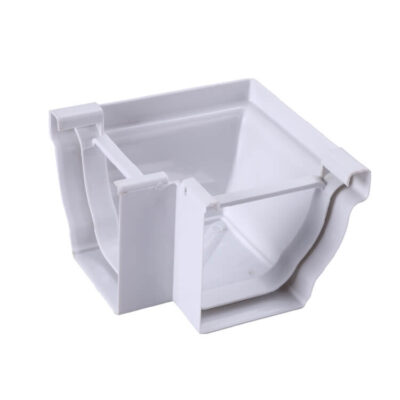

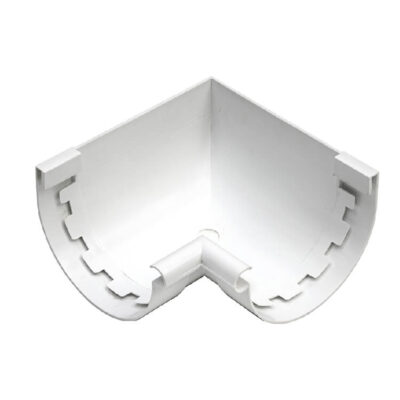

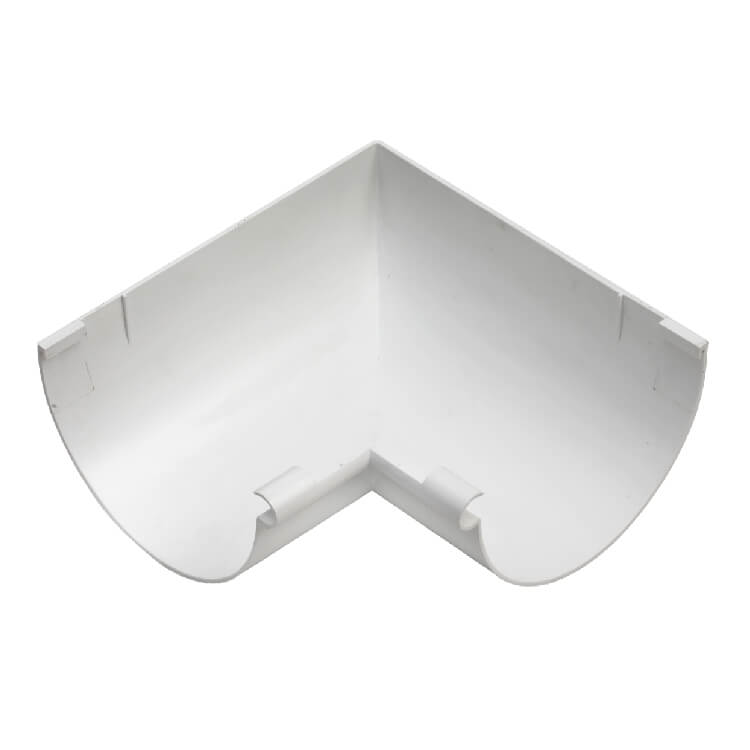

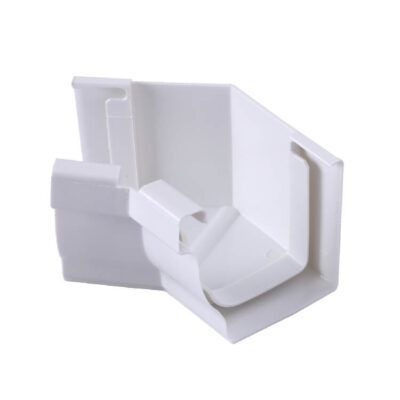

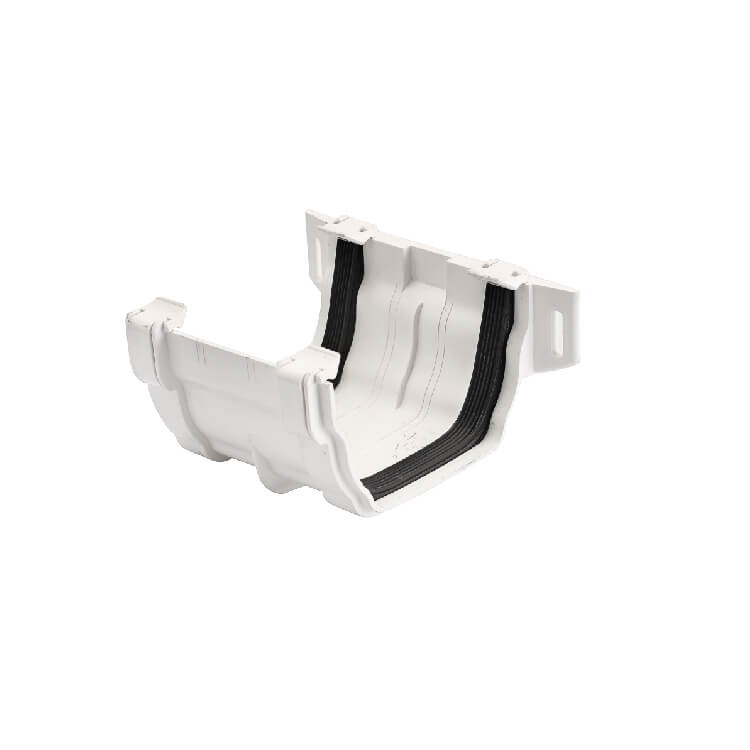

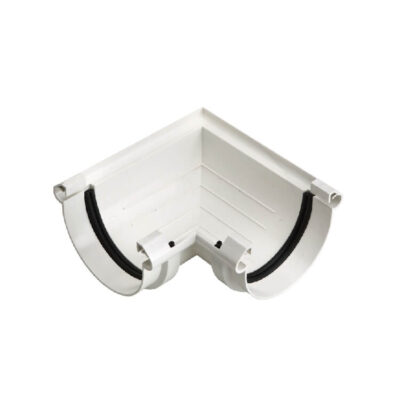

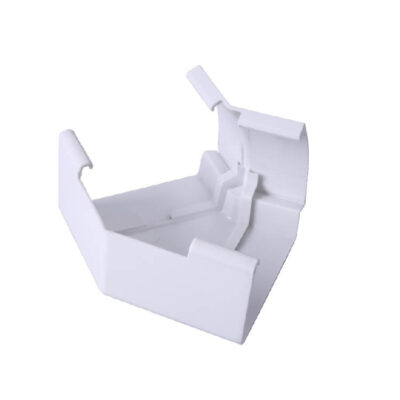

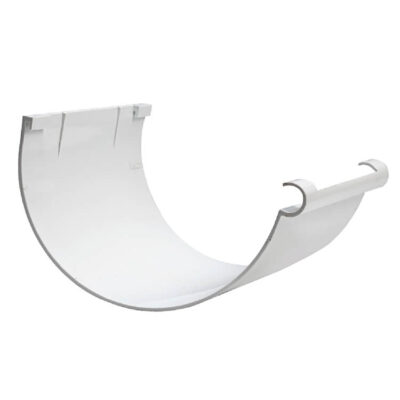

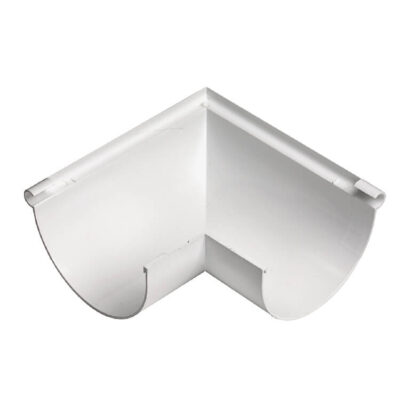

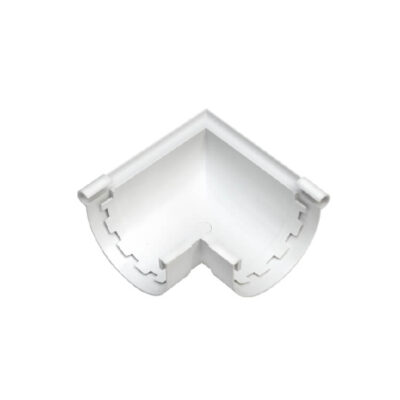

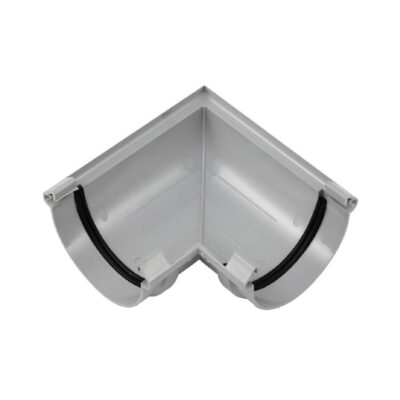

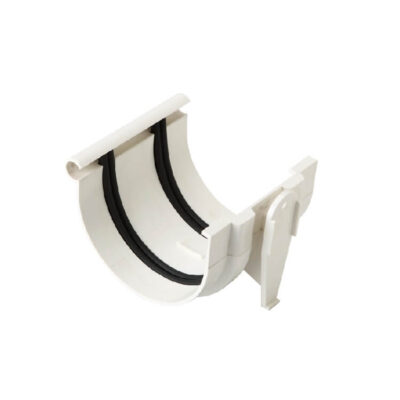

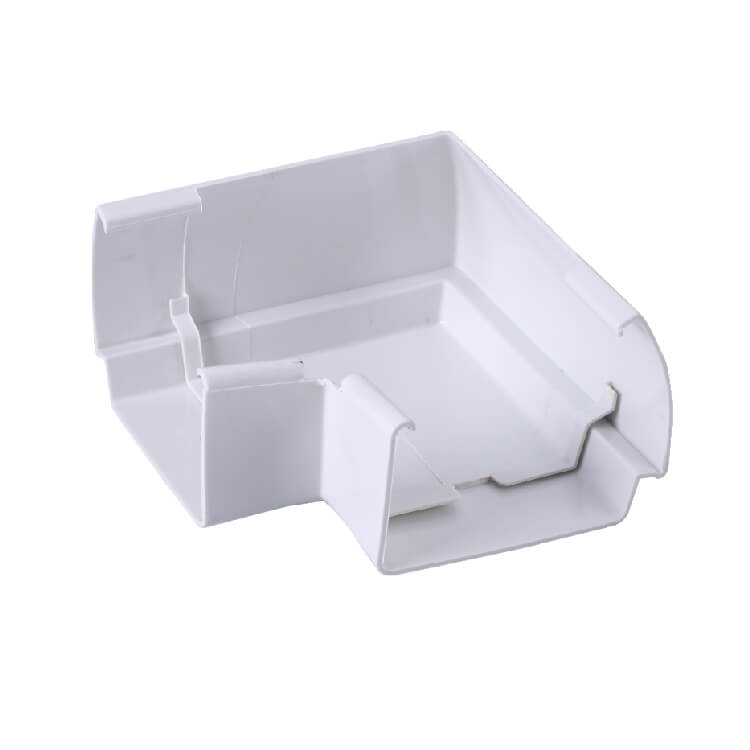

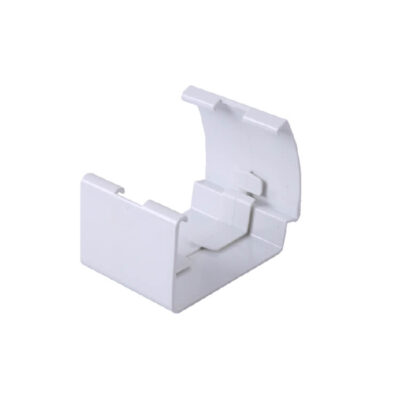

7. When encountering the corner of the rain gutter, you need to use a “clip connector” to connect the “external corner” and “inner angle”, and the connection part of the rain gutter and the rain gutter also needs to be connected with a “clip connector”.
8. During the installation of the rain gutter, in order to prevent water leakage, glass glue and PVC glue must be applied to the corresponding accessories such as the lock device and the card connector.
